Setting up a mixed reality environment
Using the headset's depth sensor, you can first scan meshes of your room which can be used by mixed reality apps. Room scan can also auto-detect objects in your surroundings such as walls and tables.
The types of objects required by the mixed reality app you're using may vary. You can add them manually during MR room setup as needed.
Here's how to set up a mixed reality environment via MR room setup:
- From Home, select Settings.
- Select Boundary.
Set up next to

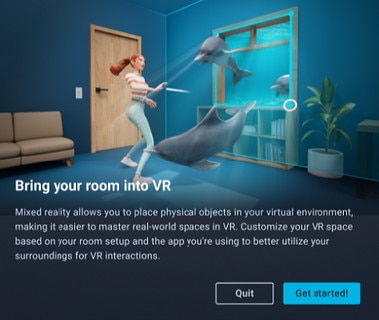

If this is your first time to set up mixed reality, select Get started.
Start and follow the instructions in the
Scan room dialog box to scan your room.

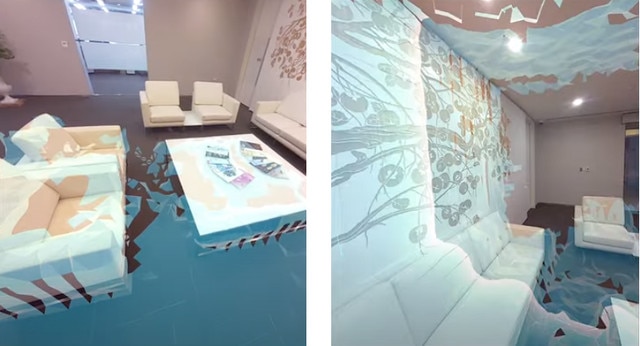

As you move and look around your environment, meshes will be created and will cover the surfaces and objects that you're scanning.
When you've finished scanning, select
The meshes and detected walls and tables will be saved in the headset.Tip: If needed, you can perform another scan or select Reset walls to manually define walls in your environment.
To add more objects for the mixed reality app you're using, do the following:
Add objects and then choose the type of object that your mixed reality app needs to use.
Follow the tutorial and use hand gestures or the controller to manually define the object.
Defining a window via hand gestures Defining a window via the controller
- Select Add objects and then choose the type of object that your mixed reality app needs to use.
