VMware AirWatch
Setting up VMware AirWatch agent and enrolling VIVE XR Elite using a QR code
-
In your computer's web browser, go to a website that can generate QR codes.
For example: https://www.the-qrcode-generator.com/
-

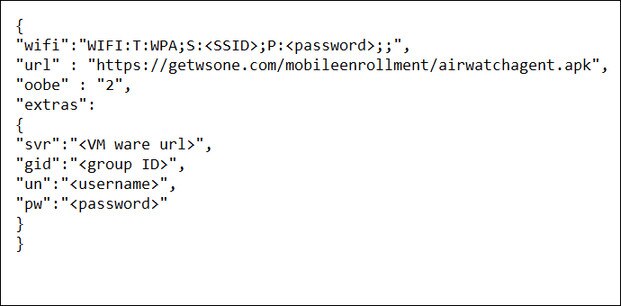

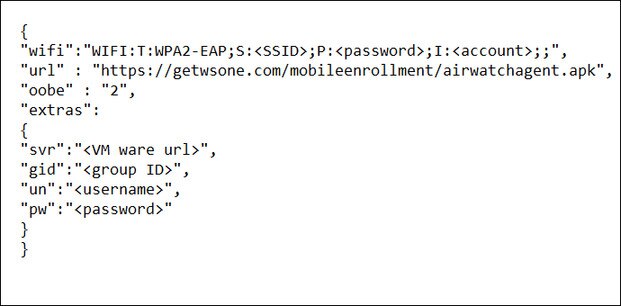

Configure your QR code with the following data:
- Headset setup:
Parameter Description wifi
Wi-Fi configuration. For details, see the "Wi-Fi settings" table.
url
Download link for VMware AirWatch
oobe
Configuration for specifying what to include in the headset setup process:
0: Include the complete setup process
1: Include only room setup and first-time controller setup
2: Skip the entire headset setup process
extras
For details, see the "Additional data" table. Note:The download link for VMware AirWatch is https://getwsone.com/mobileenrollment/airwatchagent.apk. Make sure the URL is accessible before generating your QR code.
- Wi-Fi settings:
Parameter Description WIFI
Authentication type (for example: WPA2-EAP, WPA)
S
Network SSID
P
Network password
I
Identity
- Additional data:
You can include the following data as needed when automatically enrolling VIVE XR Elite with the VMware AirWatch agent:
Parameter Description svr
Server URL gid
Group ID un
Username pw
Password
- Headset setup:

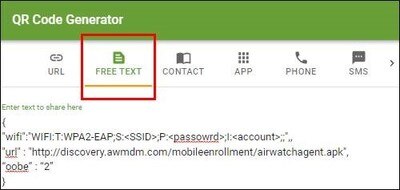

- Generate your QR code, and then download it onto your computer.
- Open the QR code on your computer, and then put on your headset.
- From Home, select Settings > Advanced > MDM setup > QR code.
-
Use the onscreen QR code scanner to scan the QR code displayed on your computer screen.
The MDM Setup window will appear. The VMware AirWatch agent will then automatically enroll the headset. When enrollment is complete, follow the onscreen instructions to finish setting up the headset.
