Connecting a USB device to the VIVE Pro HMD
You can connect a USB Type-C compatible third-party device to VIVE Pro HMD using a USB cable.

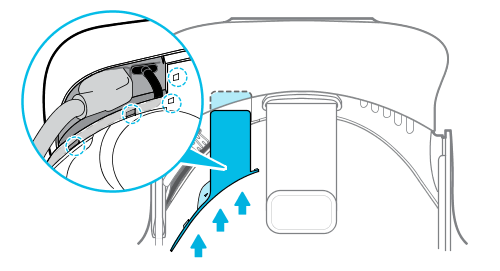

Peel off the face cushion starting from both ends until it detaches from the headset.
Carefully pry open the compartment cover from its flap. Pull the cover out to access the ports on the headset.

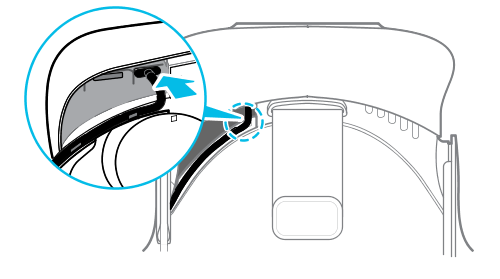

Insert the cable connector of the device to the USB Type-C port on the headset.
Align and push the tabs of the compartment cover onto their corresponding holes.
Replace the face cushion by inserting its tab into the slot on the headset, and then aligning the hook and loop strips.
- Connect the other end of the USB cable to the third-party device.
