How do I reassemble the headset after repair?
After receiving your repaired headset, properly attach the accessories before using your headset again.
- Reconnect the 3-in-1 cable and audio cable, and then replace the compartment cover.

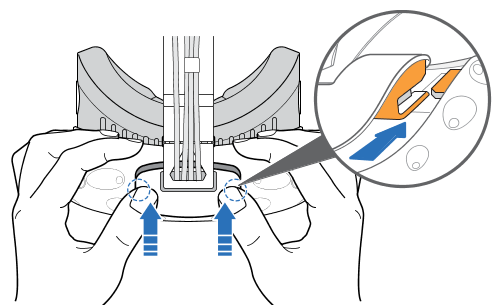

To replace the compartment cover, align the ridge on the cover with the tabs on the compartment, and then push the cover until it snaps in place.
Make sure that the cables pass through the sleeve at the back of the headset.
- Reattach the face cushion. Insert the tab on the face cushion into the slot on the headset, and then align the hook and loop strips.

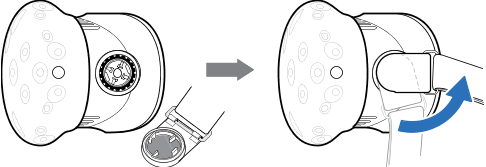

- Reattach the standard strap and its buckles. With the strap hanging down, align the buckle to the connector and then rotate it counterclockwise. You'll hear a click when the buckle locks in place.
