Connecting VIVE Focus Vision to your computer using the VIVE Wired Streaming Kit

Take advantage of the stability and bandwidth of a DisplayPort™ connection when performing a wired streaming session with VIVE Focus Vision.
Important: DisplayPort mode using the VIVE Wired Streaming Kit is only supported on VIVE Focus Vision.
You'll need to use the VIVE Wired Streaming Kit to take advantage of a DisplayPort connection. Here's what you'll find inside the VIVE Wired Streaming Kit box.
1 VIVE Wired Streaming Cable (supports DP Alt Mode)
2 Converter
3 mini-DP to DP adapter
4 USB Type-C to DP adapter
5 1.2 M USB Type-C cable (for power adapter)
6 30 W PD power adapter

You can purchase the VIVE Wired Streaming Kit on the VIVE accessory page.

  1. Connect the converter to a power source.
    Note: You can also use the VIVE Focus Vision power adapter to power the converter. Plug the cable of the power adapter into the circular port on the converter.
  2. Connect the converter to your computer's DisplayPort and USB Type-A ports using the converter cables.
    Note: If your computer doesn't have a DisplayPort port, connect the DP cable to your computer's mini-DisplayPort or USB Type-C port by using the adapters included in the VIVE Wired Streaming Kit.

    If your computer has both mini-DisplayPort and USB Type-C ports, connect the DP cable to the mini-DisplayPort port.

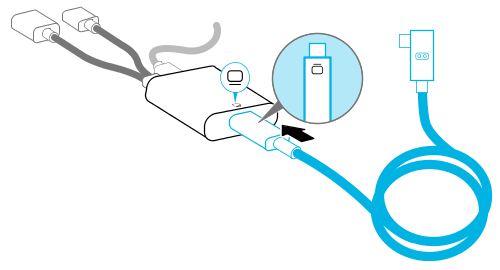

  3. Connect the end connector of the VIVE Wired Streaming Cable with the icon to the converter.
    Important: Make sure the cable is plugged in all the way (you'll hear a click).
  4. Attach the L-connector of the VIVE Wired Streaming Cable to the USB Type-C port on the side of the headset.
  5. Fasten both hook-and-loop cable wraps behind the built-in speaker. Make sure to fasten them with the fuzzy side out to avoid tangling with hair.
