Install the PCIe WiGig card & wireless link box
Attach the wireless adapter
Download the app
Make sure to shut down your computer before installing the PCIe card and wireless link box. Scan the QR code here to get the instructions on your phone.
Shut down your computer. Unplug the power cable and all other cables from your computer.
NOTE: Your computer may be hot if you’ve been using it for a long time. Wait for a few minutes to let the computer cool before removing its cover.
Insert the PCIe WiGig card in an available PCIe slot on your motherboard:
NOTE: In very rare cases, depending on the brand of motherboard you're using, compatibility issues may occur. Please try other PCIe slots when this happens.
Close the computer cover securely. Reconnect the power cable and all other cables to your computer.
Connect the wireless link box to the card. Screw the provided clip to the base of the wireless link box. Then, attach the clip to your monitor.
You can now turn on your computer and proceed to the next step: attaching the wireless adapter to your headset.
IMPORTANT: To see instructions on how to attach the wireless adapter to your headset, please select a headset type above.
Carefully push open the compartment cover to access the connection ports on the headset.
Carefully pull the tab until the HDMI cable is unplugged. Then, unplug the power cable and USB cable.
There's a cradle attached at the base of the wireless adapter. Unfasten the horizontal velcro strap and you'll see a clip on the cradle.
To attach the wireless adapter to your headset, insert the cradle's clip into the sleeve that shows the VIVE logo on the headset strap.
Use both the vertical and horizontal velcro straps to secure the wireless adapter in place.
Wrap both straps around the headset strap and fasten them.
Insert the L-shaped HDMI, USB, and power connectors of the 3-in-1 short cable through the headset strap hole, followed by the compartment cover hole.
Plug in both ends of the cable to the respective ports on the headset compartment and the wireless adapter as shown in the image.
Align the ridges on the cover with the tabs on the compartment. When aligned, push the cover until it snaps in place.
Use the long USB cable provided in the box to connect the wireless adapter to the power bank.
IMPORTANT: Use only the HTC QC 3.0 Power Bank with the VIVE Wireless Adapter.
There's a cradle attached at the base of the wireless adapter. Unfasten the horizontal velcro strap and you'll see ridges on the cradle.
Align the cradle's ridges with the corners of the top band's hard shell. Press down ﬁrmly to attach the wireless adapter in place.
Wrap both straps around the back of the Deluxe Audio Strap and fasten them.
To replace your VIVE Pro headset cable with the short headset cable provided in the attachment kit, please do the following:
First, remove the face cushion and compartment cover from the headset.
Unplug your current headset cable from the VIVE Pro headset.
Connect the short headset cable provided in the attachment kit.
Loop the cable around the left edge of the headset band and press it into the black ridge to ﬁx it in place.
Place the compartment cover back into the headset. Reattach the face cushion to its original position. Make sure the velcro straps are aligned with the headset.
Detach the head pad from the headset and peel oﬀ its cushion. Replace it with the new cushion provided in the attachment kit.
From the base of the wireless adapter, detach the screws and remove the cradle that's used for VIVE.
Attach the cradle for VIVE Pro to the base of the wireless adapter, and then fasten the screws back into place.
Unfasten the velcro strap and you'll see a clip on the cradle.
Insert the cradle's clip at the top of the headset strap.
Align the cushion with the wireless adapter. Wrap the velcro strap around the cushion and fasten it.
Insert the other end of the short headset cable to the back of the wireless adapter.

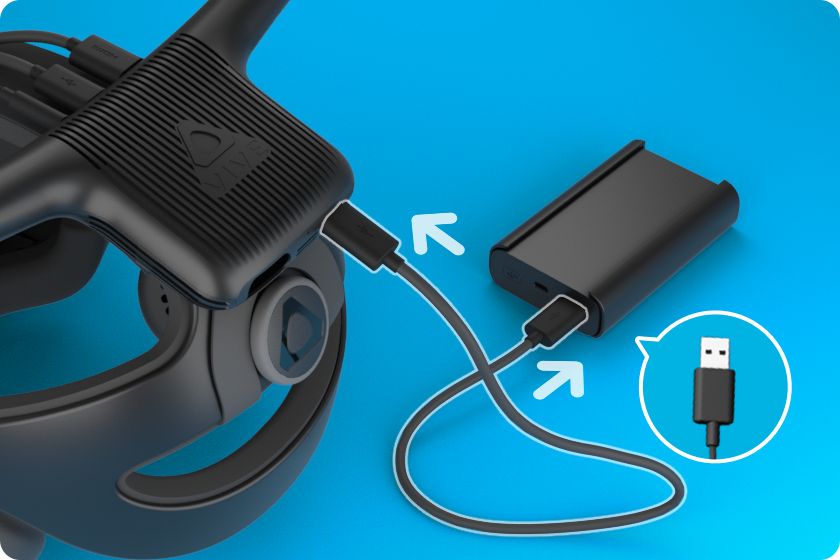

Use the long USB cable to connect the wireless adapter to the power bank.
I agree to the DisplayLink EULA.
Follow the onscreen instructions to pair the wireless adapter with the wireless link box.
Put the provided HTC Power Bank in your waist belt or pocket. Now you can enjoy the VR world wirelessly!
You have unlocked the full potential of your VIVE. Prepare yourself for untethered virtual reality.
For an optimal wireless experience, you may need to make slight adjustments to suit your space or environment. See the support page for more details.
